Background
On my youtube channel, there’s a request to show my whole anamorphic setup. I’m glad to show but it consists of so many parts. So I write down all of them here.
Setup Movies
Youtube
Vimeo
Main Concept
- Keep it modularized.
- Unify the quick-release plate & baseplate to minimize adjustments on set.
- Use ratchet mini clamp lever (M5 L16) to tighten securely and fast.
Legend of Links
- o: Official Site
- a: Adorama
- ac: Amazon.com
- aj: Amazon.co.jp
- *: Affiliated
Camera & Lenses
- Blackmagic Pocket Cinema Camera 4K
- Metabones Speedbooster Canon EF Lens to BMPCC4K T CINE Speed Booster® ULTRA 0.71x – MB_SPEF-m43-BTA (o a*)
- Leica R Lenses
- Leitax Mount Adapter from Leica-R to Canon-EF
- Kowa 8Z
- Kenko 82mm Diopters

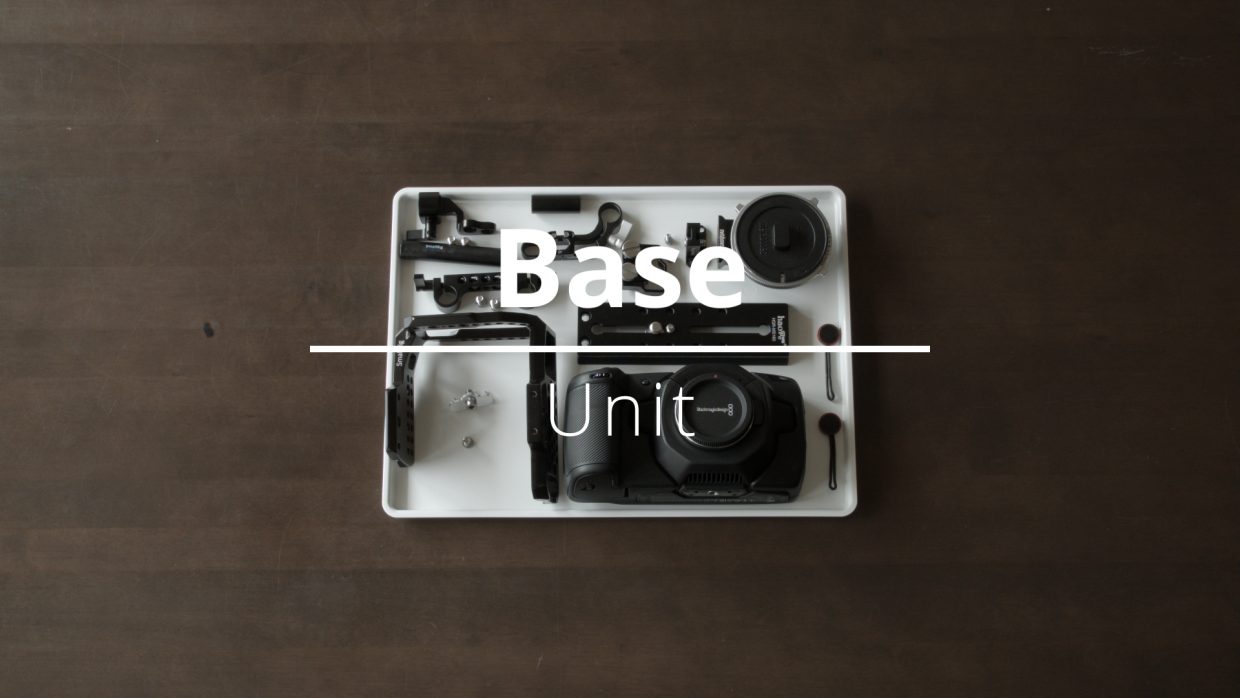

Base Unit
*click image to see how to assemble
Core
- SmallRig Half Cage for Blackmagic Design Pocket Cinema Camera 4K & 6K (Old Version) – 2254 (o a* ac* aj*)
- SmallRig HDMI and USB-C Cable Clamp – 2246 (o a* ac* aj*)
- SmallRig 15mm Single Rod Clamp for BMPCC 4K & 6K Cage – 2279 (o a* aj*)
- SmallRig Aluminum Alloy Pair of 15mm Rods (M12-4inch 100mm) – 1049 (o a* ac* aj*)
- Cut into 80mm by pipe cutter
Focal reducer
Quick-release plate
Strap
Extention points
SSD Holder
- 8Sinn Holder for Samsung T5 SSD on 15mm Rod Mount – 8-SSDH ST5 ROD (o a* ac* aj*)
- Niceyrig Aluminum Alloy Rod 1.5 Inch Length – 026 (o aj*)
- Use when without Side Handle

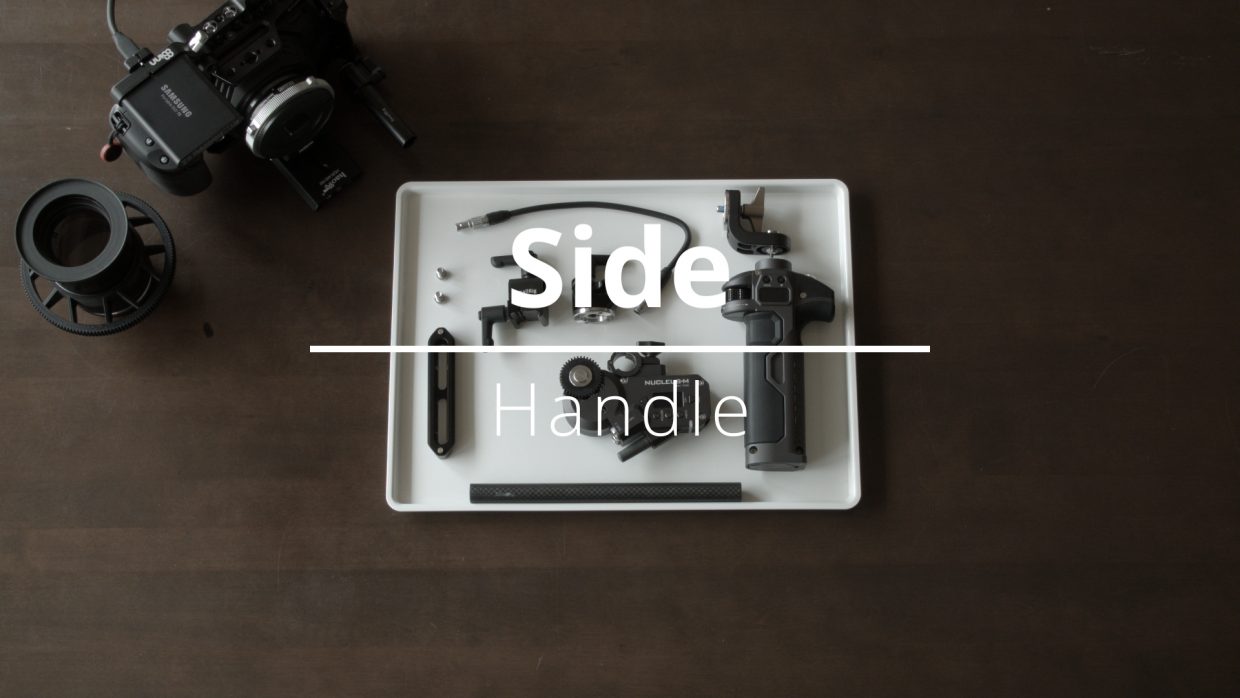

Side Handle
*click image to see how to assemble
- SmallRig Quick Release NATO Rail (10cm) – 1134 (o a*)
- SmallRig 15mm Carbon Fiber Rod – 20cm 8 inches (2pcs) – 870 (o a*)
- SmallRig SWAT Rail Clamp (15mm Perpendicular) – 1245 (o a*)
- SmallRig 15mm Rod Clamp with Arri Rosette – 1686 (o a*)
- Tilta Nucleus-M Handgrip, Left – WLC-T03-HL (a*)

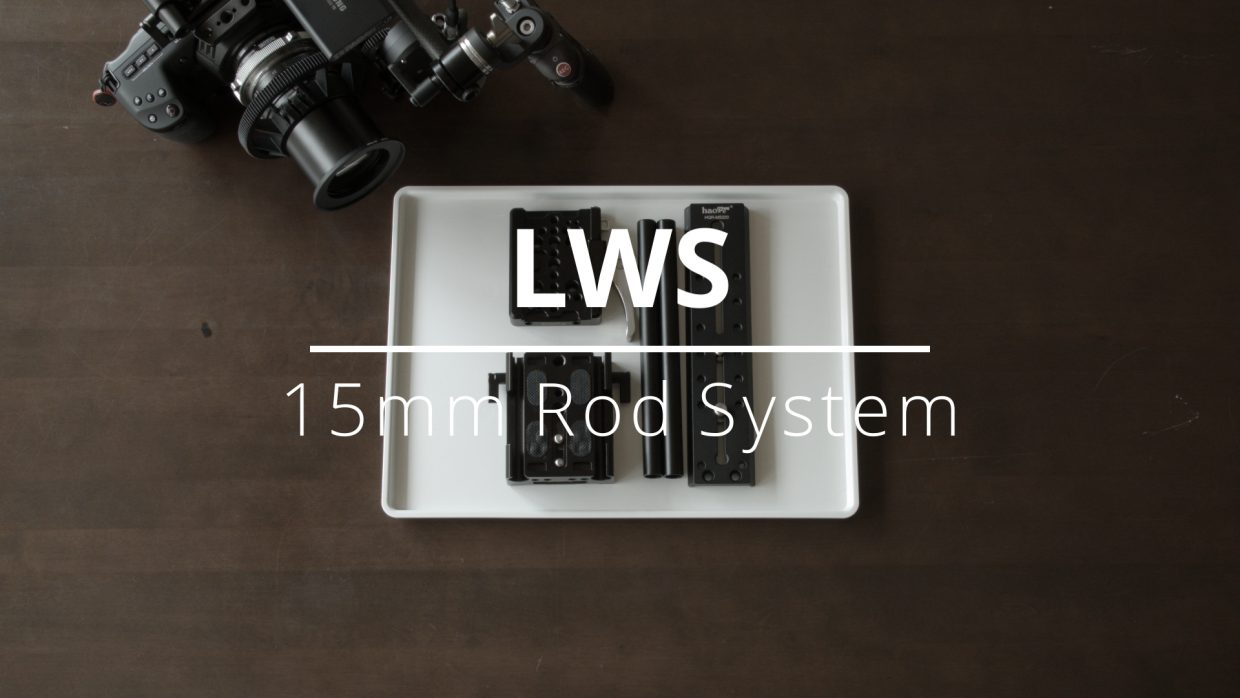

15mm LWS Rod System
*click image to see how to assemble
- SmallRig Drop-In Baseplate (Manfrotto 501PL QR Plate Compatible) – 2006 (o a*)
- SmallRig 2pcs 15mm Black Aluminum Alloy Rod(M12-20cm) 8inch – 1051 (o a*)
- SmallRig Canon EOS C100/ C100 Mark II/ C300 Mark II/ Sony FS7 Baseplate – 1740 (o a*)
- Haoge 220mm Rapid Connect Long Sliding Quick Release Plate for Manfrotto – HQR-MS220 (ac)

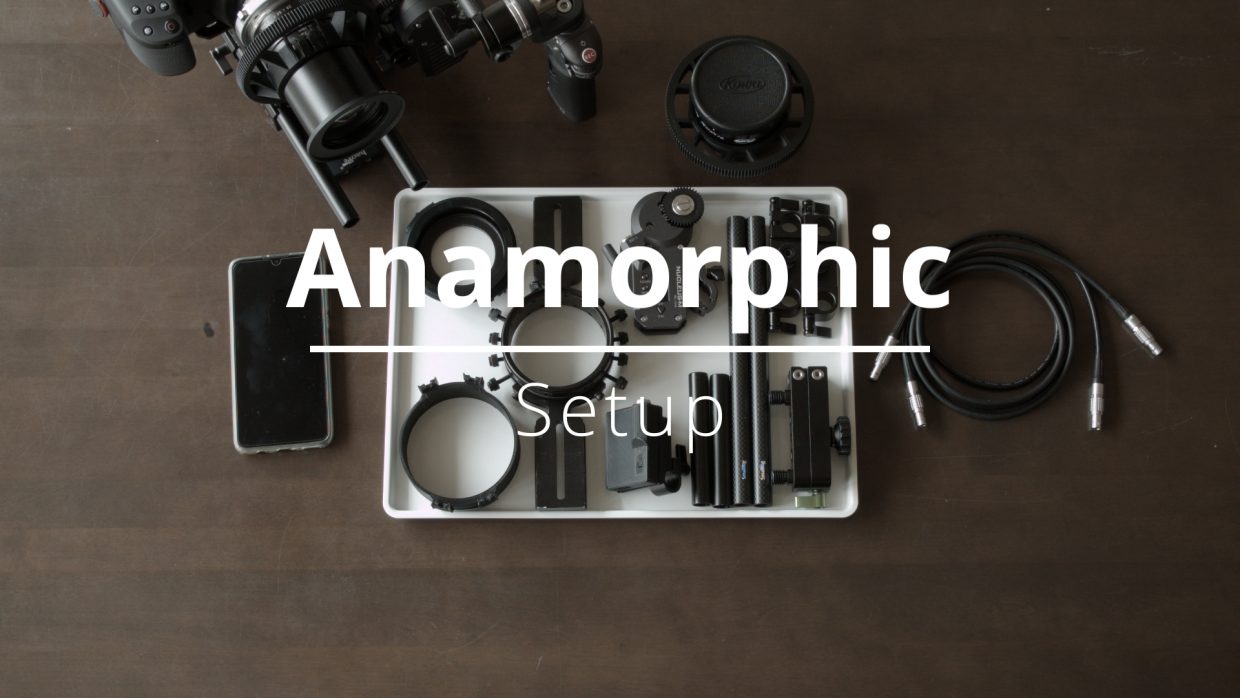

Anamorphic Setup
*click image to see how to assemble
Swing-away system
- LanParte Swing Clamp – SWC-01 (o)
- SmallRig Aluminum Alloy Pair of 15mm Rods (M12-4inch 100mm) – 1049 (o a* ac* aj*)
- The extension rods of the lower side
- SmallRig Rod Connector with M12 Thread for 15mm Aluminum Alloy Rods (Pack of 2) – 900 (o a*)
Anamorphic Lens Clamp
- SmallRig 15mm Carbon Fiber Rod – 20cm 8 inches (2pcs) – 870 (o a*)
- The rods of the upper side.
- SmallRig Dual 15mm Rod Clamp with Threads – 1806 (o a*) x 2 pcs
- To fix the upper and the lower side of the Rapido Clamp to the rods
- M5 Thumb Screw x 2 pcs
- To fix Rapido Clamp Support beams to Smallrig Rod Clamp 1806
- Rapido Technology V3 Clamp (o)
- Support Beam x 2 pcs
- External Ring x 1 pc
- Inner Ring x 1 pc
- Custom Step-up Ring x 1 pc
- Depends on the size of rear thread of the anamorphic lens
- Nylon Thumb Screw M4 x 8 pcs or more

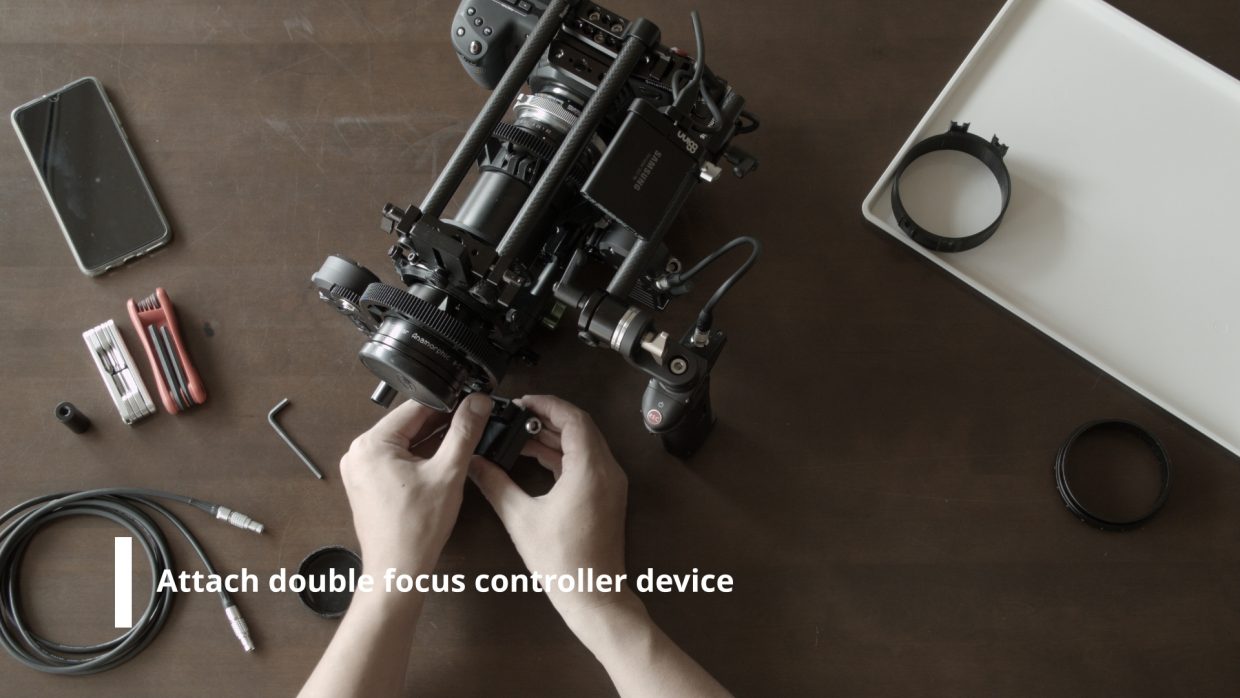

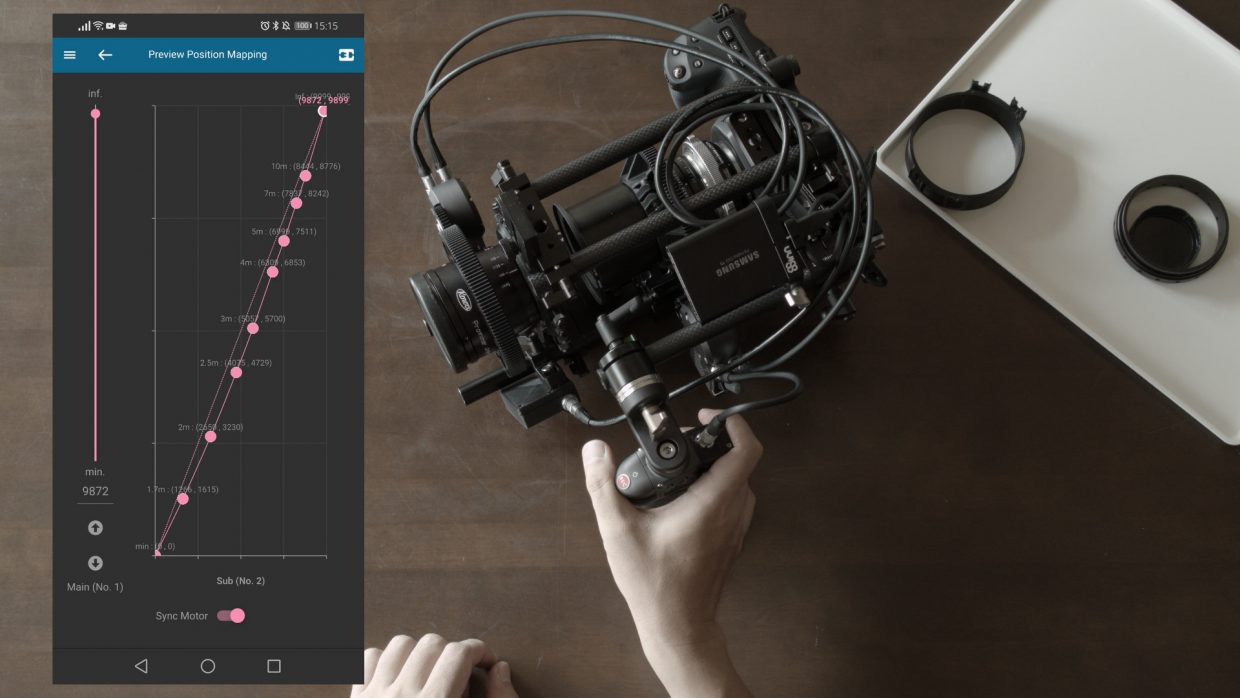

Double Focus Controller
*click image to see how to assemble and how it works

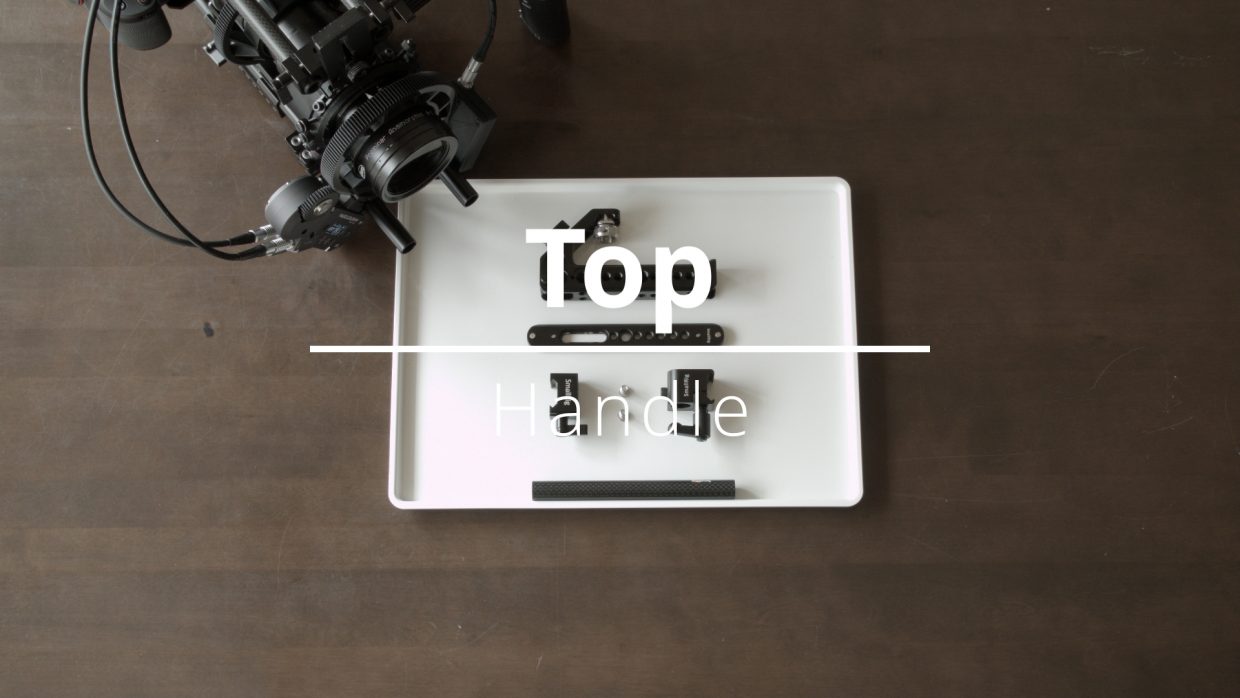

Top Handle
*click image to see how to assemble
- SmallRig Nato Clamp Mount with Arri 3/8” Hole – 2207 (o a*)
- SmallRig Arri Locating Handle – 2165 (o a*)
- SmallRig Safety NATO Rail 150mm – 1876 (o a*)
- SmallRig SWAT Rail Clamp (15mm Perpendicular) – 1245 (o a*)
- SmallRig 15mm Carbon Fiber Rod (150mm, 6 Inches) – 1872 (o a*)

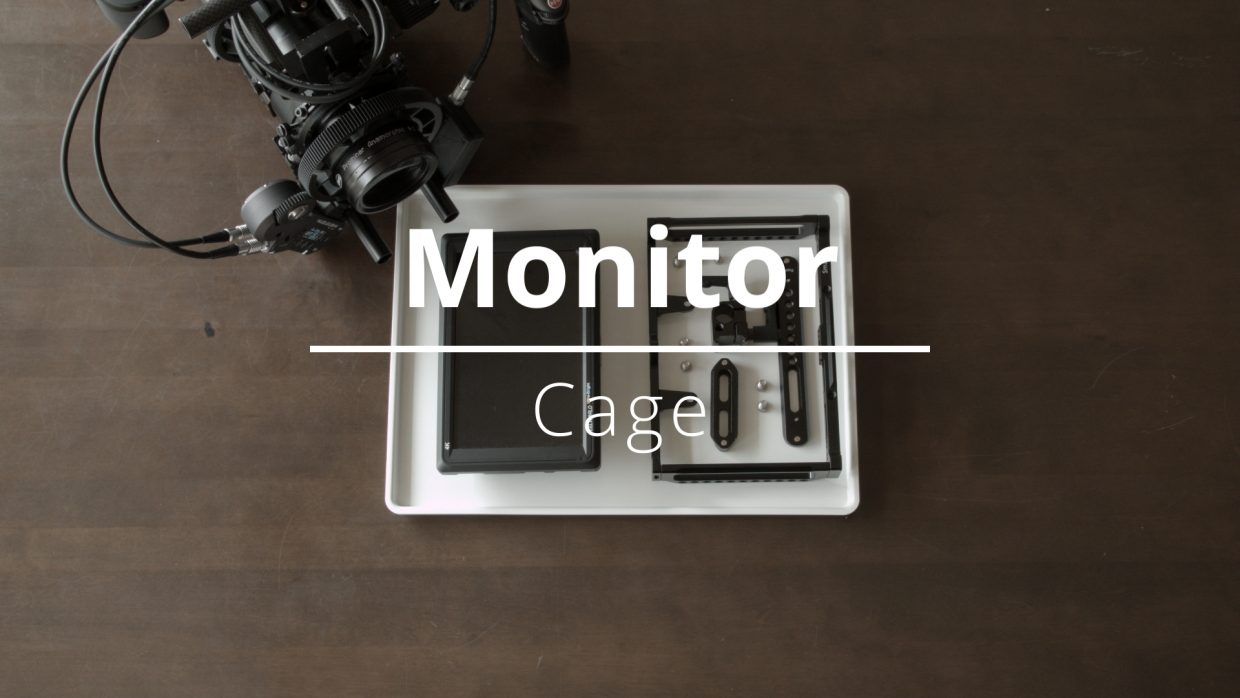

Monitor Cage
*click image to see how to assemble
- Feelworld FW279 (o a*)
- Feelworld Battery Plate for LP-E6
- SmallRig Monitor Cage for Feelworld T7, 703, 703S, MA7, MA7S, and F7S Monitor – 2233 (o a*)
- SmallRig Safety NATO Rail 150mm – 1876 (o a*)
- SmallRig Quick Release Safety Rail 7cm – 1195 (o a*)
- SmallRig SWAT Nato Rail with 15mm Rod Clamp (Parallel) – 1254 (o a*)

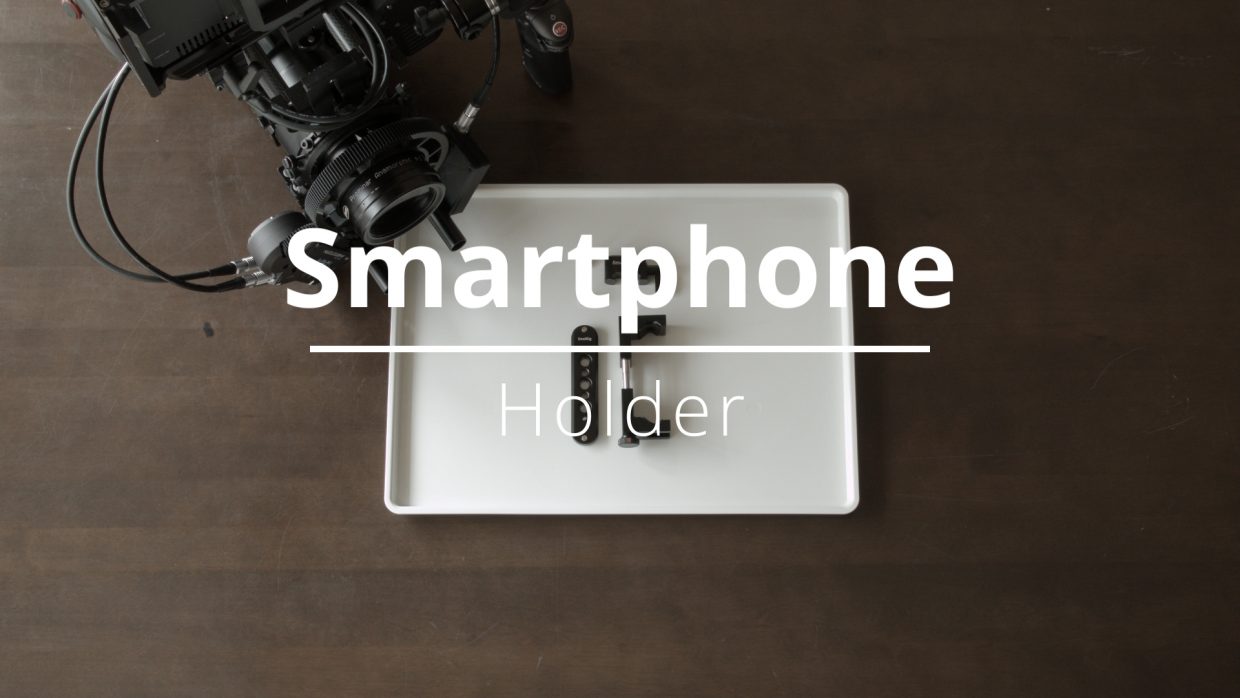

Smartphone Holder
*click image to see how to assemble
- Ulanzi ST-02S Aluminum Phone Tripod Mount w Cold Shoe Mount – ST-02 (az)
- SmallRig Safety NATO Rail – 1933 (o a*)
- SmallRig Quick Release NATO Clamp – 1973 (o a*)
V-mount Battery
*click image to see how to assemble
- SmallRig V-Lock Assembly Kit 1846 (o a*)
- SmallRig Single 15mm Rail Clamp 1549 (o a*)
- SmallRig Aluminum Alloy Pair of 15mm Rods (M12-4inch 100mm) – 1049 (o a* ac* aj*)
- SmallRig Single Rod Clamp – 15mm (2 thread) – 842 (o a*)
- SmallRig Super lightweight 15mm RailBlock v3 – 942 (o a* ac* aj*)
- SmallRig Rod Connector with M12 Thread for 15mm Aluminum Alloy Rods (Pack of 2) – 900 (o a*)
- SmallRig 2pcs 15mm Black Aluminum Alloy Rod (M12-15cm) 6 inches – 1050 (o a*)
- Andoer Male D-Tap B Type Power Tap to 4 Female D-Tap P-Tap Hub Adapter for Photography Power

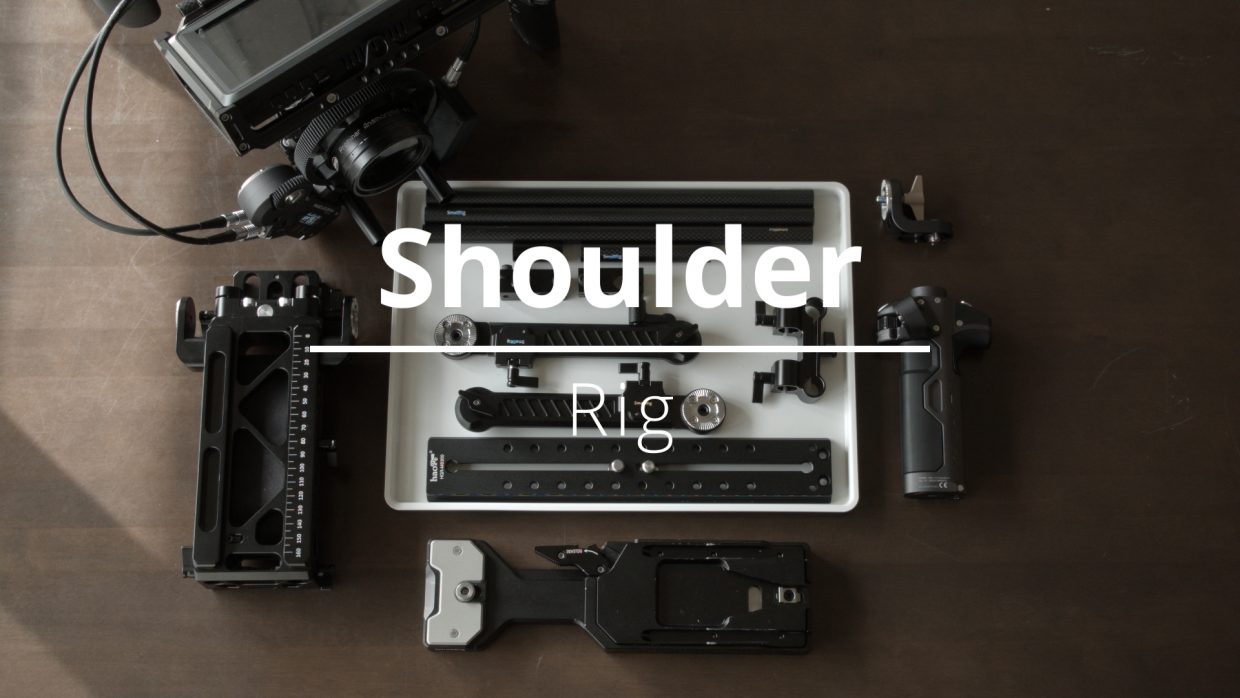

Shoulder Rig
*click image to see how to assemble
Main Body
- SmallRig Sony VCT-14 Shoulder Plate – 1954 (o a*)
- SmallRig VCT-14 Quick Release Tripod Plate – 2169 (o a*)
- Haoge 300mm Rapid Connect Long Sliding Quick Release Plate for Manfrotto – HQR-MS300 (ac)
Handles
- SmallRig Extension Arm with Arri Rosette – 1870 (o a*)
- Tilta Nucleus-M Handgrip, Left – WLC-T03-HL (a*)
- Tilta Nucleus-M Handgrip, Right – WLC-T03-HR (a*)
Forward Extention
- SmallRig 15mm Carbon Fiber Rod – 30cm 12 inch (2pcs) – 851 (o a*)
- SmallRig 90° Double Rod Clamp DCD2374 (o a*)
Horizontal Extention & Monitor Panning
- SmallRig 15mm Carbon Fiber Rod – 30cm 12 inch (2pcs) – 851 (o a*)
- SmallRig 15mm Carbon Fiber Rod 100mm 4 Inch – 1871 (o a*)
- SmallRig 90 Degree 15mm Rod Clamp Adapter DCD1104 (o a*) x 2 pcs
- Niceyrig Aluminum Alloy Rod 1.5 Inch Length – 026 (o aj*)
Matte Box
Not so recommended…
- JTZ DP30 Cine Carbon Fiber 4×5.65 Inch Swing-Away Matte Box (ac*)

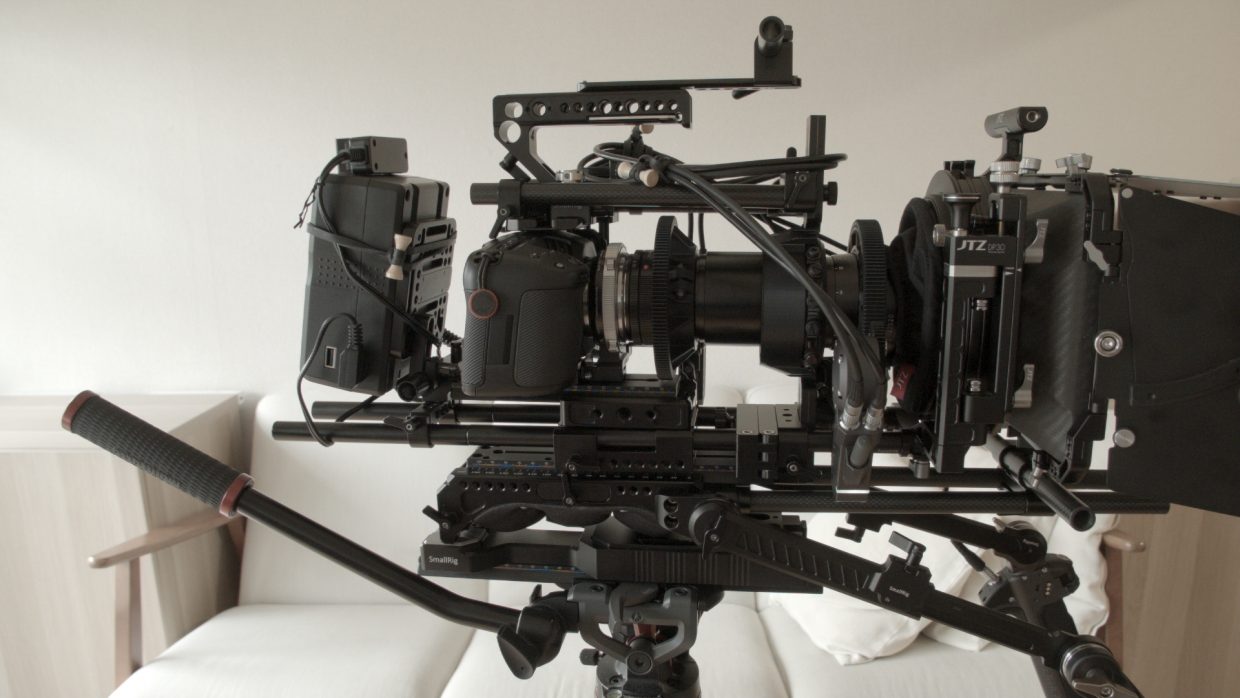

Full Setup
*click image to see how this setup goes
